Linear Lights

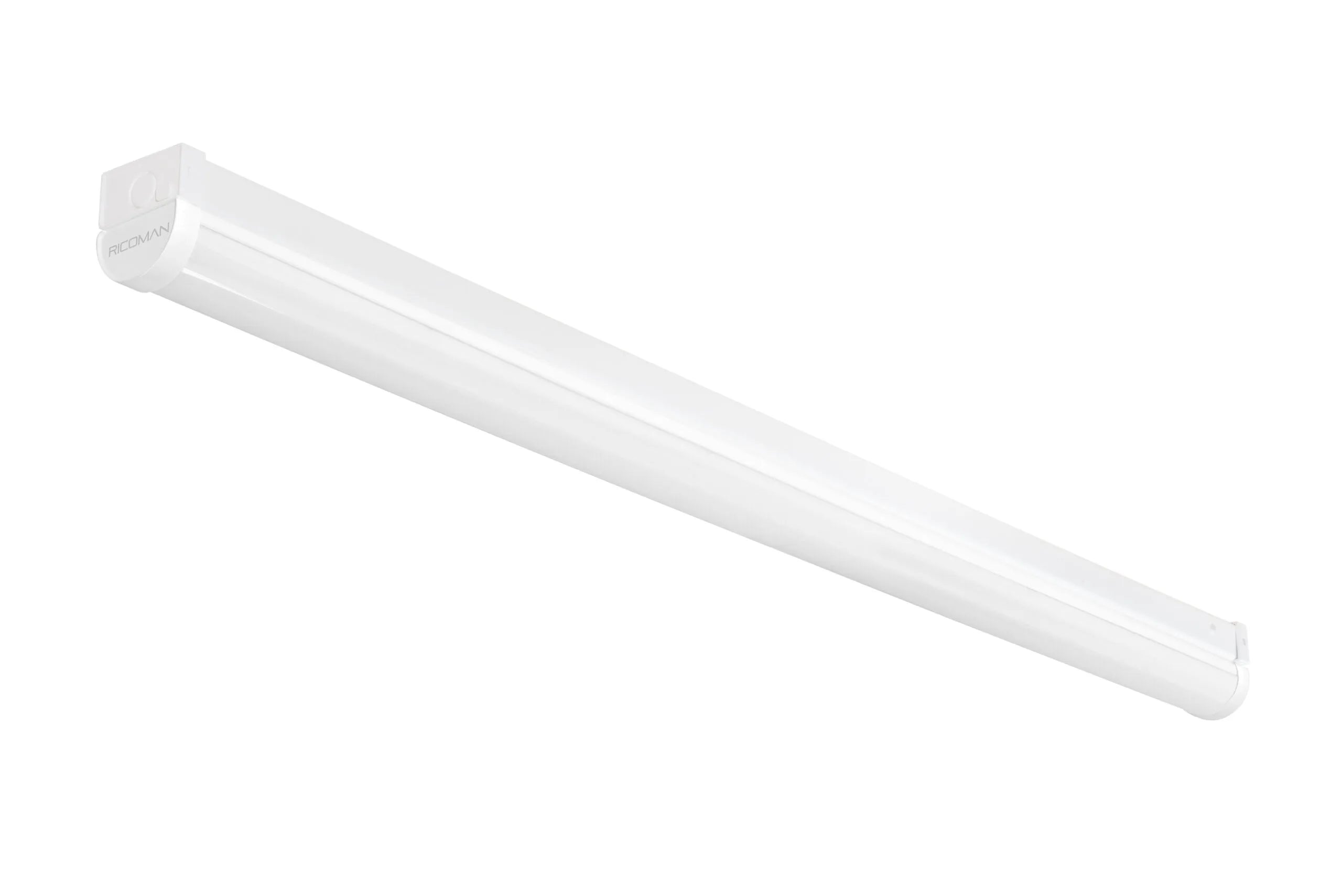

Orion LED Batten Light | Surface Mounted | 5000K

Orion LED Batten Light | Surface Mounted | 5000K

£12.60 GBP
£12.60 GBP
Sale Sold out
Taxes included.

Key Features

  • Key Feature 1 : Exceptional efficacy 130 lumens per watt
  • Key Feature 2 : Efficiency of 130lm/W
  • Key Feature 3 : Can be connected to a BESA box

A white LED linear batten at 1.2m and 1.8m with exceptional efficacy 130 lumens per watt.

This type of fitting is widely used in schools, universities, care facilities as well as retail & office environments.

Length
  • Free Shipping on orders over £100
  • Delivery in 1-2 weeks
  • 30-day Return Policy

Customise this product

View full details
White rectangular light fixture on a white background

Specifications
  • Product Code: LL280101: Orion Batten 1.2m 25W 5000K / LL280302: Orion Batten 1.8m 70W 5000K
  • Construction material: steel
  • Body finish: Signal White (RAL9003)
  • Diffuser type: Polycarbonate
  • CRI>85Ra
  • IP rating: IP20
  • Lumen Output: ~130 Lm/W
  • Colour temperature: 5000K
  • Lighting direction: downwards
  • Beam angle: 120 degrees
  • Operating hours: 50,000
  • Flicker free: yes
  • Driver: Internal Drivers supplied
  • Macadam Ellipse: = ≤4 sdcm
  • Voltage Range: AC220-240V
  • Inrush Current: A20
  • Power Factor: >0.90
  • Protection Class IEC: Class I
  • Warranty: 5 years | Emergency Warranty: 3 Years

Size
Batten size: L1220 / L1784 x W60 x H71mm
