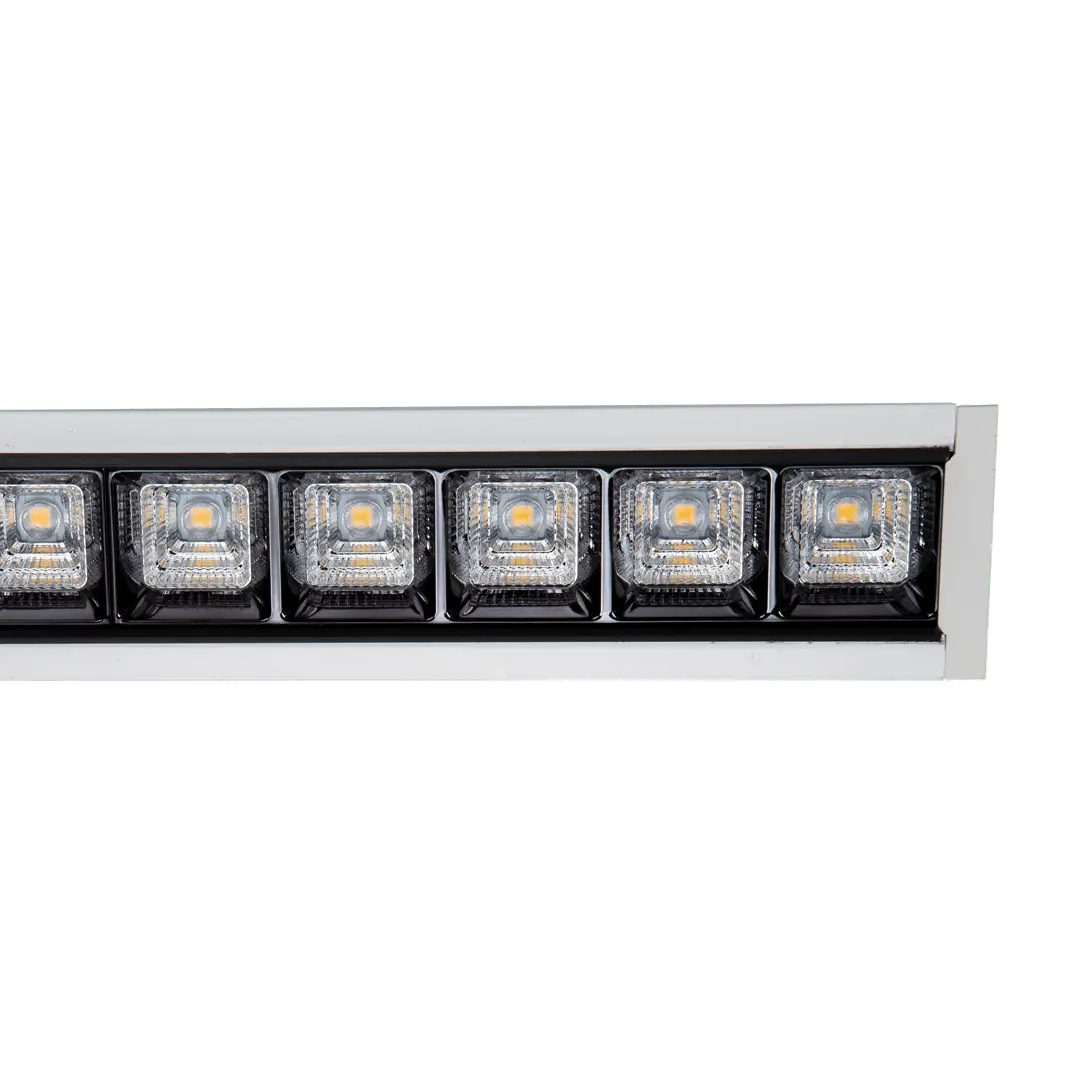

PROLine Linear LED Square Optics Customisable UGR Light Recessed 3000K
PROLine Linear LED Square Optics Customisable UGR Light Recessed 3000K

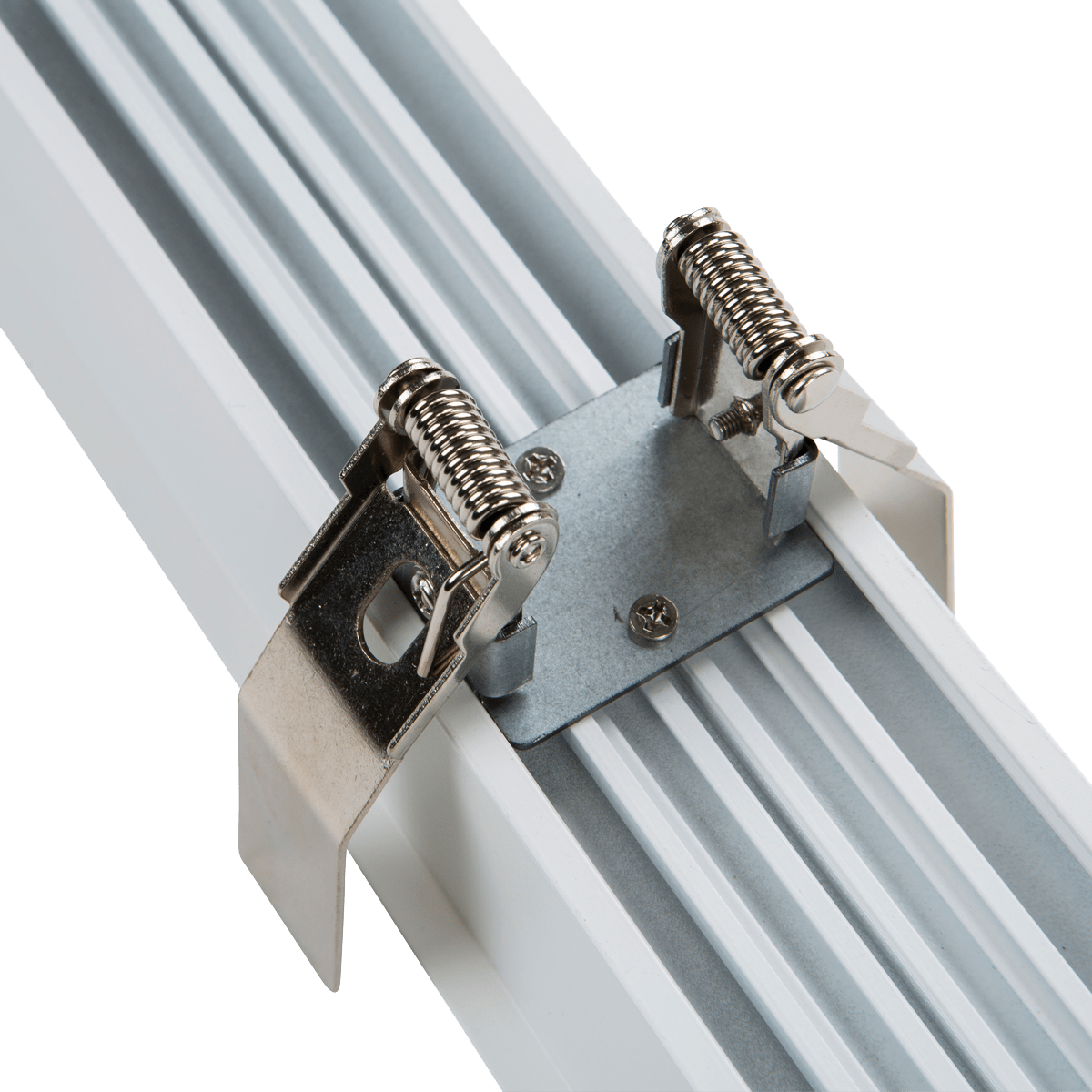

Versatile LED recessed linear lighting system designed to elevate any environment. The square aperture optics add a unique element to this series of linear luminaires. These UGR lights feature an exceptional glare control cellular system, comprised of single square glare control cells combined to create optimal glare control of the complete luminaire, with UGR<14. This version features a cosy warm white (3000K) , making it perfect for applications such as residential and hotel interiors , hospitality, retail, wellness facilities, restaurants and bars. and includes recessed clips for easy installation. Powered by Samsung LED Chips with an excellent CRI>90Ra, PROLine is a seamless solution perfect for workplace, retail and office applications. Additional features like dimming and emergency options are available on request. If you require further customisation such as a different optic style, dimming, up lighting, custom colour temperatures, colour finishes, simply click the 'Customize' button or contact us directly.
- Free Shipping on orders over £100
- Bespoke product - please get in touch for lead time
- 30-day Return Policy
Couldn't load pickup availability
Collapsible content
Specifications
- Product Code: variable
- Construction material: aluminium
- Body finish: traffic white (RAL9016)
- Diffuser type: square aperture
- Linkable: yes
- IP Rating: IP40
- IK Rating: IK08
- Mounting: recessed

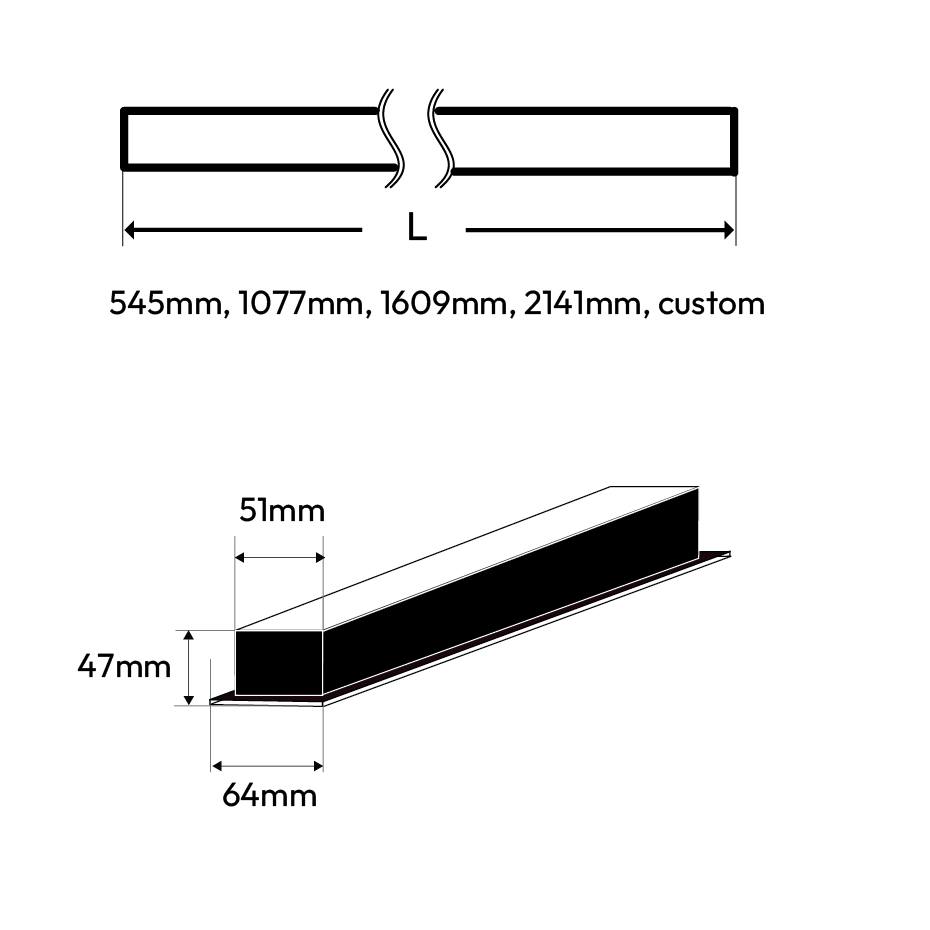

- Wattage: 14W (545mm) | 28W (1077mm) | 42W (1609mm) | 56W (2141mm) - Customisations available
- Colour tempereture: 3000K
- Lumen output: ~120 lumens/watt
- Lighting direction: downwards
- Beam angle: 90 degrees
- Operating hours: 50,000
- Flicker free: yes
- LEDs: Single bin Samsung
- Driver: remote non dim (custom dimmable available)
- Macadam ellipse: =< 3 sdcm
- Voltage range: 220-240V
- Power factor: >0.90
- Inrush current: <60A
Size
Downloads
Delivery and Returns
Discover PROLine Linear Lighting System
Create seamless lines of continuous light or striking geometric shapes with PROLine. Available as surface-mounted, suspended with optional indirect lighting, and as a recessed linear version, it adapts beautifully to any setting.
PROLine offers a range of customizable optics to suit your style and beam angle needs, along with options for dimming, emergency features, and even an integrated tiltable spotlight for added flexibility.
From Continuous Runs to Custom Shapes and Optic Styles
PROLine Rectangular LED Linear Light Various Sizes 4000K
PROLine Linear LED Square Optics Customisable UGR Light Suspended 4000K
Bespoke PROLine Solutions
Manufactured in our UK workshop in Manchester, PROLine combines precision engineering with exceptional versatility. Available in pendant, surface-mounted, and recessed installations, it’s built to suit a wide range of project types—from domestic and commercial spaces to retail and hospitality environments.
With options like Circadian and RGBW lighting, wireless control, and custom RAL finishes, PROLine adapts effortlessly to any setting. Designed with sustainability in mind, it uses high-efficiency components and is built to last, reducing waste and energy consumption over time
