PROLine Linear LED Customisable Light Surface Mounted 3000K
PROLine Linear LED Customisable Light Surface Mounted 3000K

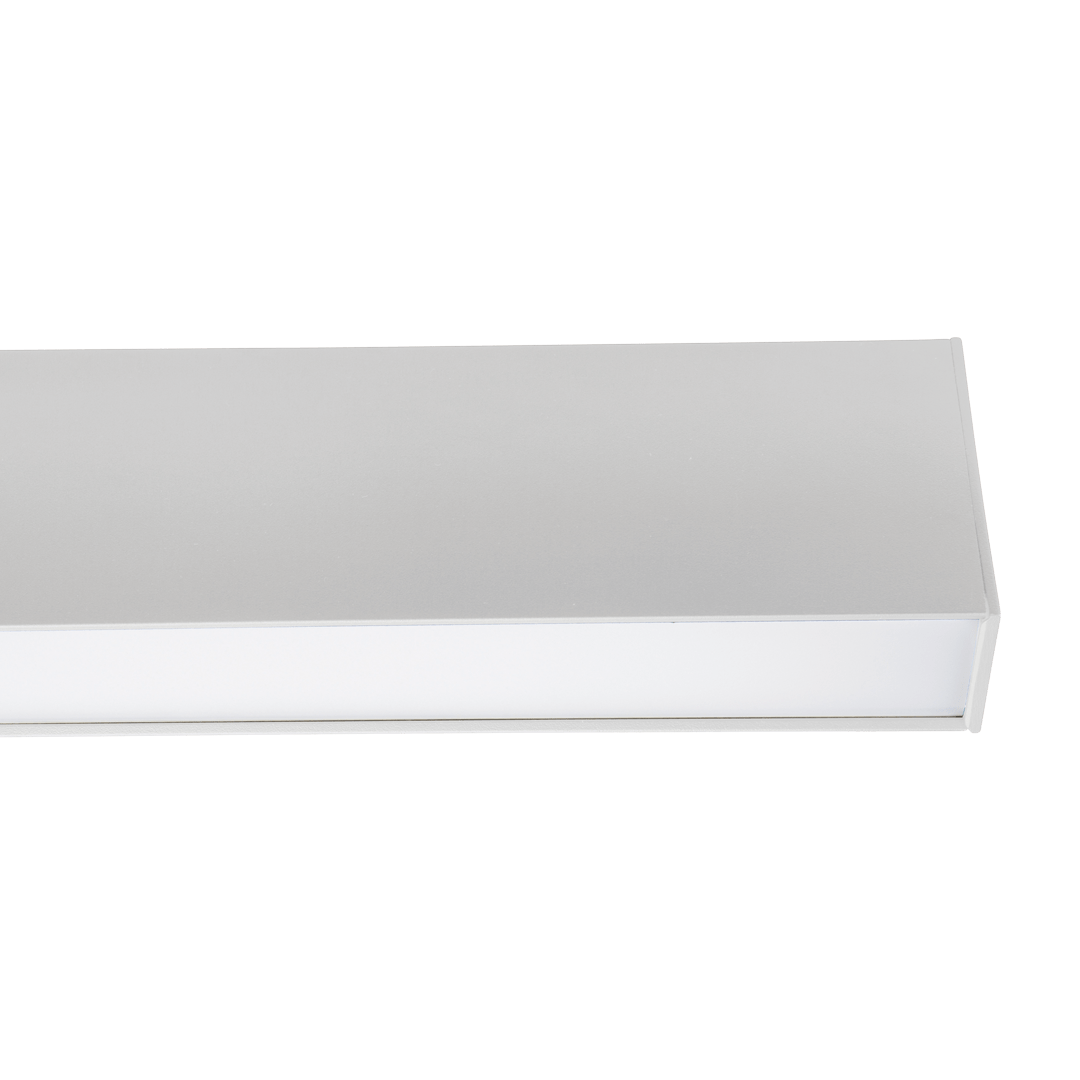

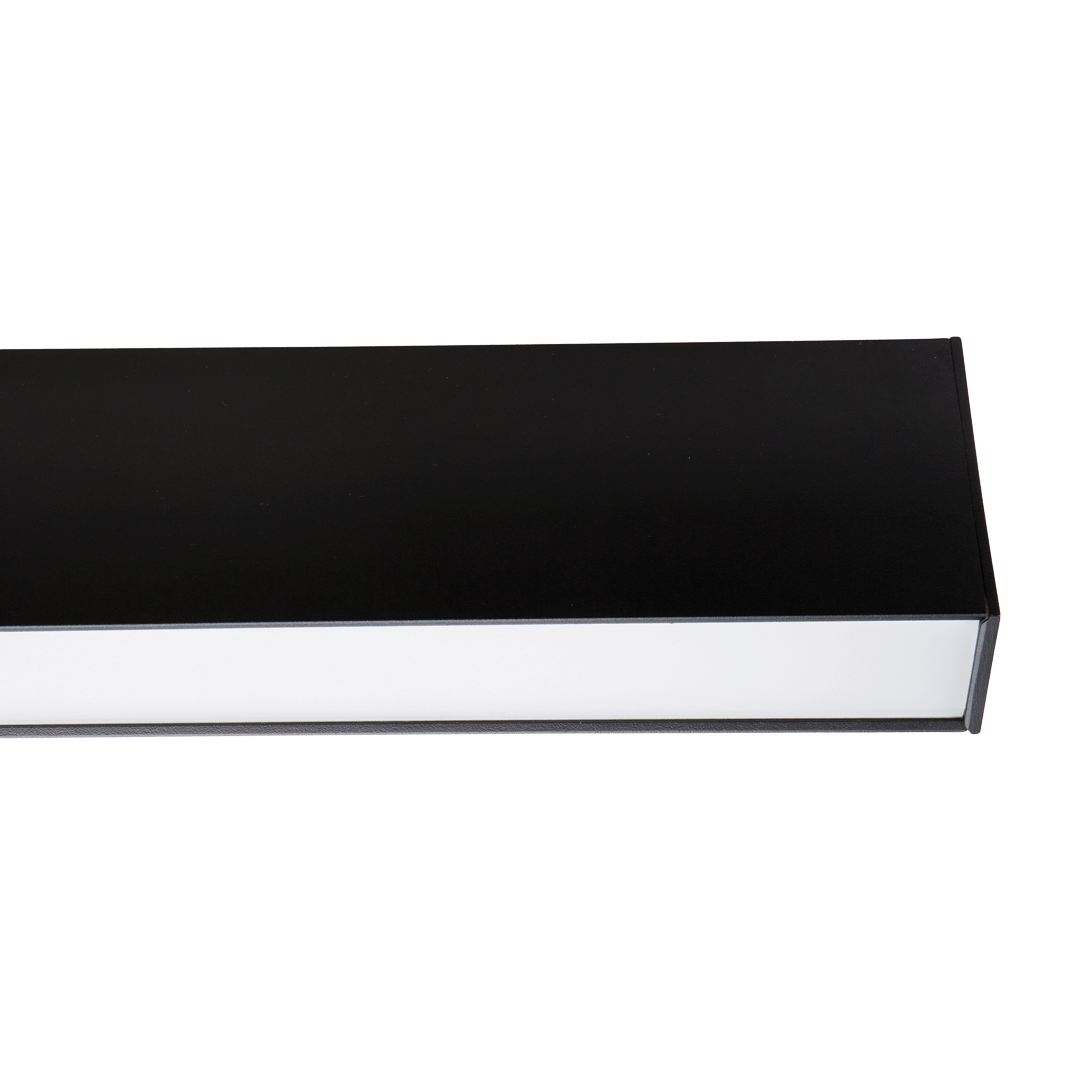

Versatile LED surface mounted linear lighting system designed to elevate any environment. Available in classic white or elegant black, PROLine offers standalone linear lights in four lengths: 532mm, 1064mm, 1596mm, and 2128mm. These fittings can seamlessly connect to form continuous runs or custom shapes using various connectors. This version features a cosy warm white (3000K) and includes a surface mounting kit, making it perfect for applications such as residential and hotel interiors , hospitality, retail, wellness facilities, restaurants and bars. Powered by Samsung LED Chips with an excellent CRI>90Ra, PROLine ensures perfect illumination. Each light includes an integral driver and supports additional features like dimming and emergency options. If you require further customisation such as a different optics, up lighting, custom colour temperatures, colour finishes, simply click the 'Customize' button or contact us directly.
- Free Shipping on orders over £100
- Bespoke product - please get in touch for lead time
- 30-day Return Policy
Couldn't load pickup availability
Collapsible content
Specifications
- Product Code: variable
- Construction material: aluminium
- Body finish: jet black (RAL9005) | traffic white (RAL9016)
- Diffuser type: TP(a) rated opal polycarbonate
- Linkable: yes
- IP Rating: IP40
- IK Rating: IK08
- Mounting: Surface/Ceiling mounted (also available as suspended)
- Wattage: 14W (532mm) | 28W (1064mm) | 42W (1596mm) | 56W (2128mm) - Customisations available
- Lumen output: ~120 lumens/watt
- Colour temperature: 3000K
- Lighting direction: downwards
- Beam angle: 100 degrees
- Operating hours: 50,000
- Flicker free: yes
- LEDs: Single bin Samsung
- Driver: Integral non dim (custom dimmable available)
- Macadam ellipse: =< 3 sdcm
- Voltage range: 220-240V
- Power factor: >0.90
- Inrush current: <60A
Size
Downloads
Delivery and Returns
Discover PROLine Linear Lighting System
Create seamless lines of continuous light or striking geometric shapes with PROLine. Available as surface-mounted, suspended with optional indirect lighting, and as a recessed linear version, it adapts beautifully to any setting.
PROLine offers a range of customizable optics to suit your style and beam angle needs, along with options for dimming, emergency features, and even an integrated tiltable spotlight for added flexibility.
From Continuous Runs to Custom Shapes and Optic Styles
PROLine Rectangular LED Linear Light Various Sizes 4000K
PROLine Linear LED Square Optics Customisable UGR Light Suspended 4000K
Bespoke PROLine Solutions
Manufactured in our UK workshop in Manchester, PROLine combines precision engineering with exceptional versatility. Available in pendant, surface-mounted, and recessed installations, it’s built to suit a wide range of project types—from domestic and commercial spaces to retail and hospitality environments.
With options like Circadian and RGBW lighting, wireless control, and custom RAL finishes, PROLine adapts effortlessly to any setting. Designed with sustainability in mind, it uses high-efficiency components and is built to last, reducing waste and energy consumption over time
